2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire

Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: RVYUAN
Orzecznictwo: ISO9001/ISO14001 /UL/SGS
Numer modelu: USTC
Minimalne zamówienie: 10 kg
Cena: negotiable
Szczegóły pakowania: Szpula z kartonem
Czas dostawy: 2-15 dni roboczych
Zasady płatności: T/T/Paypal
Możliwość Supply: Zaspokój swoje żądanie
Szczegóły informacji
Średnica: 0,05 mm Temperatura: 155
Orzecznictwo: IEC/NEMA/JIS/RoHS/ISO Dyrygent: Miedź
Pasma: 225 Napięcie przebicia: Min. 950
Materiał okładki: Nylon Nazwa produktu: Drut pleciony 2USTC-F 0,05 mm x 225 splotów Drut Litz pokryty jedwabiem
Słowo klucz: Drut pleciony 2USTC-F 0,05 mm x 225 splotów Drut Litz pokryty jedwabiem
Podkreślić:

silk covered litz wire

,

0.05mm stranded litz wire

,

225 strands ustc litz wire


opis produktu

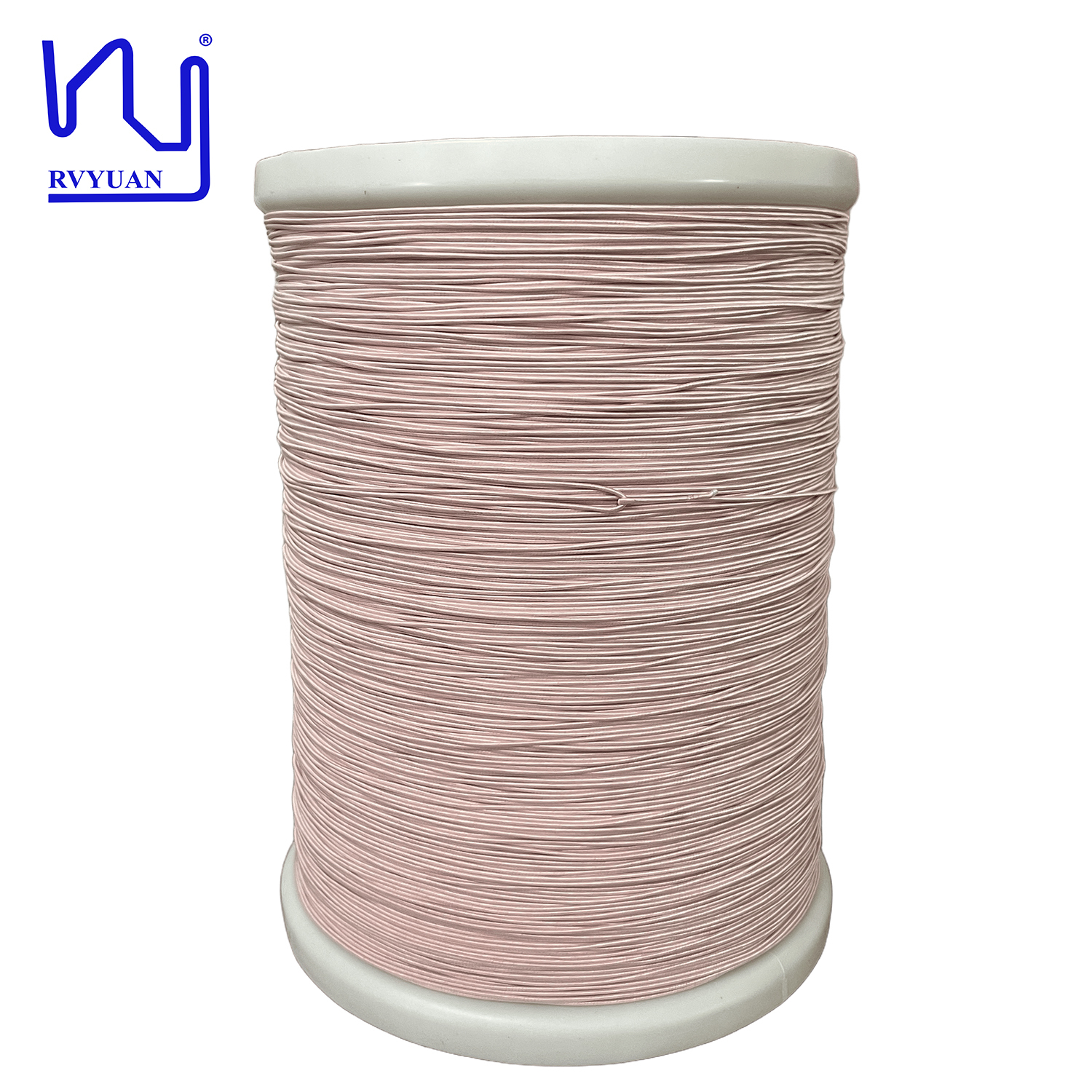

2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire

Silk covered litz wire is a specialized wire designed for high-performance applications in transformer winding, wireless charge winding, audio cable manufacturing, and more. This custom silk covered litz wire was developed for an Indian client specifically for transformer winding applications.

This litz wire features a nylon yarn outer wrapping, with alternative materials such as polyester yarn available for clients with different material preferences. We also offer exquisite natural silk coverings for high-end audio cable applications, with inner conductors typically made from high-purity copper or silver.

Technical Specifications
Item No. Wire Diameter (mm) Conductor Diameter (mm) Overall Dimension (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.055-0.069 0.05±0.003 Max. 1.42 ≤0.04551 ≥950 27±3
Sample 1 0.058 0.048 0.98 0.03858 2400
Sample 2 0.060 0.050 1.06 0.03819 2500
2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire 0
